MAN 5T Water Foam Tank Fire Fighting Truck Specialized Vehicle Price China Manufacturer

Name: MAN 5T Water Foam Tank Fire Fighting Truck Specialized Vehicle Price China Manufacturer
Brand: CXFIRE
Price: 300 USD

Brand Name : CXFIRE

Model Number : SXF5161GXFAP50/M

Certification : CCC, CE, EN, NFPA

Place of Origin : China

MOQ : 1 Unit

Price : USD300,000-USD320,000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000 units per year

Delivery Time : 8-10 months

Packaging Details : Standard Export Package and Delivery by Bulk Carrier or Ro-Ro Ship

Overall Dimension : 8550mm×2510mm×3560mm

Weight : 17000kgs with Full Load

Chassis : Germany MAN, 4X2

Engine : 213Kw

Cabin : Double row cabin with 4 doors

Superstructure : Aluminum Alloy Welded Structure

Tank : 4300L Water & 200L Type A Foam & 500L Type B Foam. PP material

Water Pump : 60L/s@10bar

Roof Water Monitor : 30L/s@10bar with 55m Shoot Range

CAFS system : Flow rate: 90L/s. With Foam Pump and Air Compressor

Contact Now

CAFS Fire Fighting Truck with MAN Chassis & 5000L Water & Foam Tank
1. The Whole Fire Truck

Model: SXF5161GXFAP50/M
Overall Dimension: 8550mm×2510mm×3560mm
Full Load Weight: 17000kgs
Number of the Crew: 6 (include driver)
Max. Speed: 90km/h
Capacity: 4300L Water & 200L Type A Foam & 500L Type B Foam. PP composite material liquid tank
Fire pump flow rate: 60L/s @ 10bar
Fire monitor: 30L/s flow rate, 55m shoot range
CAFS system: Compressed air foam mixture flow rate: 90L/s. With Foam Pump and Air Compressor

2. Rescue Equipment (Optional)
2.1 Front Winch

Installation form: under the bumper
Drive type: electric
Voltage: 24V
Max. traction: 6118kg
Max. towing length: 38m

2.2 Gasoline Generator

Rated power: 5kW
Rated frequency: 50Hz
Rated voltage: 230V
Installation position: inside the equipment compartment

2.3 Pneumatic Telescopic Light

Main power: 2×1000W
Lighting: Quartz halogen lamp
The max. height of the main light from the ground: 4.5m
Rotation angle: horizontal 420°, pitch 420°
Main lamp working voltage: 220V
Installation form: top of carriage

3. Water Pump and Roof Fire Monitor

3.1. Fire pump

Brand: Optional
Model: Optional
Rated pressure: 10 bar
Rated flow: 60L/s
Vacuum pump: electric vacuum pump
Water diversion form: wiper water diversion
Water absorption depth: 7m
Water diversion time: ≤50s
Installation form: rear-mounted

3.2 Fire monitor

Brand	Optional
Model	Optional
Rated flow	30L/s
Range	water≥55m, foam≥50m
Installation position	top of the carriage
Control mode	manual control
Horizontal rotation	0°~360°
Pitch and rotation	-15°~60°

4. Company Introduction

Founded in 1963, CXFIRE is the largest fire trucks manufacturer in China. The main manufacturing base is located in Chengdu of China with an area of 200,000 square meters and 600 staff members. More than 1000 units fire trucks are produced and sold every year.
CXFIRE will adhere to the tenet of "seeking truth and innovation, quality and customer first", as always, to serve the social security cause, and to provide users with more advanced, safe and reliable fire protection products. The company has won the trust and appreciation of users with its high-quality products and fast service; the products are spread all over the country and are exported to many countries and regions in Europe, Middle East, Asia, Australia, South America, and Africa etc. Maintained high-speed growth, and exported hundreds of fire trucks every year.

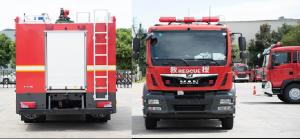

5. Reference Pictures
